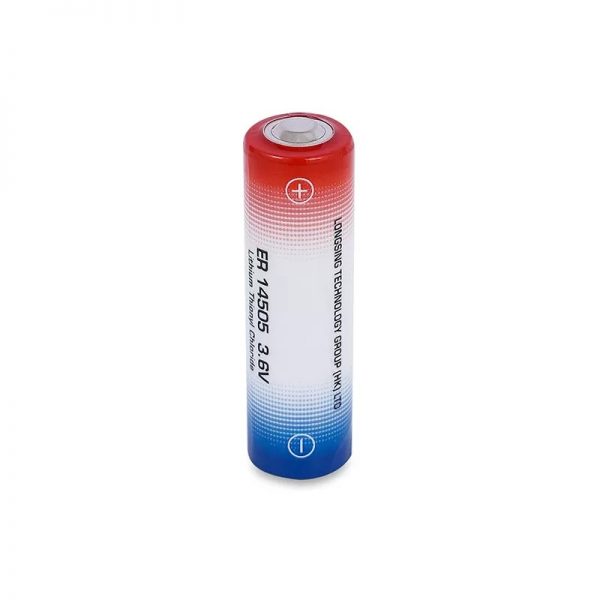

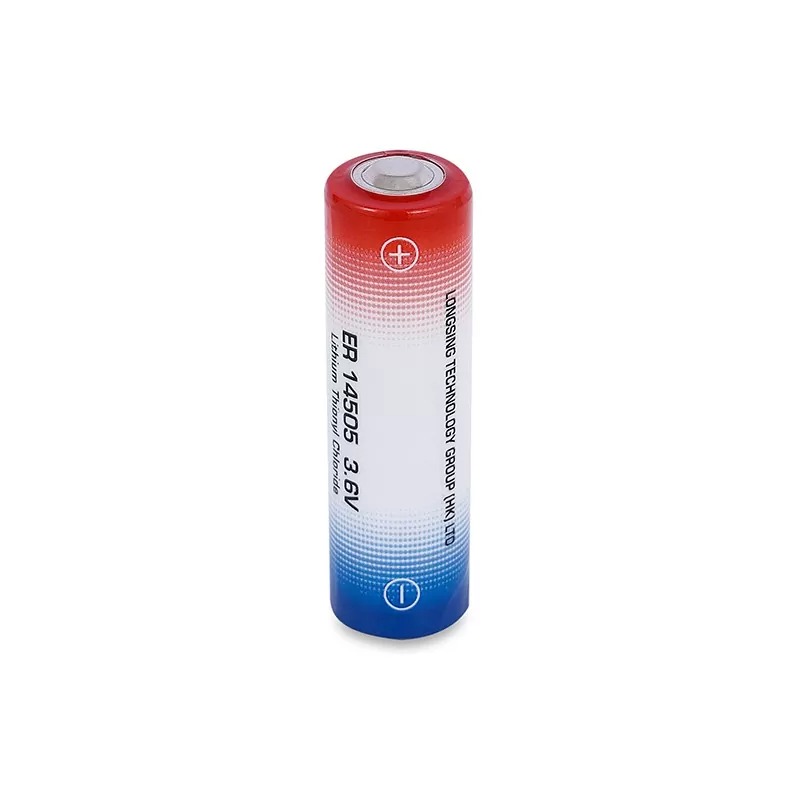

ER14505 3.6V Lithium Thionyl Chloride (Li-SOCl₂) Battery
Ideal for use in smart utility meters, IoT devices, asset tracking, medical sensors, and remote monitoring systems,
the ER14505 is engineered to deliver reliable performance in harsh environments, with an operating temperature range of –55°C to +85°C.
Its stainless steel housing, hermetic sealing, and high-quality thionyl chloride chemistry ensure superior safety, chemical stability, and resistance to corrosion and leakage.
The battery supports a shelf life of over 10 years, maintaining more than 90% of its original capacity under proper storage conditions.
Key Features:
- Model: ER14505 (AA size)
- Nominal Voltage: 3.6V
- Typical Capacity: 2600–2700 mAh
- Chemistry: Lithium Thionyl Chloride (Li-SOCl₂)
- Energy Density: up to 700 Wh/kg
- Operating Temperature: –55°C to +85°C
- Shelf Life: Up to 10–15 years (≤1% annual self-discharge)
- Size: Ø14.5 mm × 50.5 mm (AA format)
- Discharge Characteristics: Stable voltage plateau, low internal resistance
- Certifications: RoHS, UN38.3, IEC 60086, UL (model-dependent)
Applications:
- Smart meters (gas, water, electricity)
- GPS asset tracking systems
- RFID and IoT sensor nodes
- Security and alarm systems
- Industrial remote monitoring equipment
- Military and aerospace electronics
